Electric boilers

Avogadro Energy offers a range of high-quality electric boilers designed to meet diverse industrial needs. Available from 25 kW to 5000 kW, with power supply options of 230 V, 400 V, or 690 V, these boilers are ideal for industrial processes requiring continuous 24/7 operation.

Common Features:

• Compact and robust design

• High thermal efficiency

• Easy to use with low maintenance

• Installation possible in any workspace, without the need for a dedicated boiler room

• Compliance with European Directive 2014/68/EU (PED) or ASME certification

• IP54 or IP55 protection rating

• High-quality materials: carbon steel or stainless steel construction (AISI304 or AISI316)

HE - Electric Hot Water Boilers

The HE series hot water boilers are ideal for closed-loop industrial heating systems. Available in vertical and horizontal configurations, they offer a power range from 5 to 5,000 kW (4,300 - 4,300,000 Kcal/h), with a maximum operating temperature of 200°C and customizable design pressure upon request. Temperature regulation is achieved via immersion thermostats or electronic controllers.

Additional Options:

• Expansion tank

• Water pump

• Automatic filling unit

• High-density mineral wool insulation with Aluzinc metal casing, also available in AISI316 for food processing

• HTM 2031 application: clean steam for sterilization

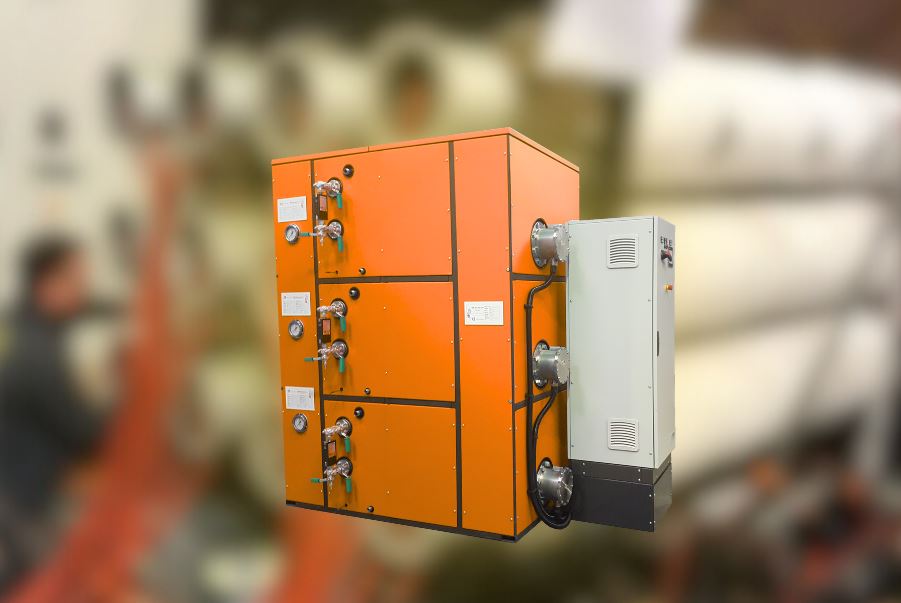

SE - Electric Steam Generators

The SE series electric boilers are designed for the production of saturated or dry steam in industrial applications, with steam output ranging from 35 to 7,000 kg/h, electric power from 25 to 5,000 kW, and design pressure up to 100 bar. Pressure regulation is achieved via electronic control with a pressure transmitter.

Key Features of the SE Series:

• Horizontal monoblock design

• Electronic pressure control

• Automatic sludge discharge (optional)

• Total Dissolved Solids (TDS) control system (optional)

• Continuous operation for 24/72 hours without supervision

• Electric superheater coupled for high-temperature steam at low pressure

• Advanced control systems with PLC and touchscreen interface options

OE - Electric Thermal Oil Heaters

The OE series thermal oil heaters are ideal for industrial processes requiring high-temperature heating in closed circuits. The power range spans from 5 to 3,000 kW (4,300 - 2,580,000 Kcal/h), with a maximum operating temperature of 330°C. Temperature regulation is achieved via multistep control using a PT100 probe or PLC and touchscreen, with a modular heating element design to ensure continuous operation in case of failure.

Additional Options for the OE Series:

• Double circulation pump

• 3-way valve on the outlet

Why Choose Avogadro Energy Electric Boilers?

• Experience: Decades of expertise in electric boiler manufacturing, delivering reliable and efficient solutions.

• Customization: Our boilers can be tailored to meet specific requirements and regulations.

• Quality Assurance: All products undergo rigorous testing and quality checks before delivery.

• Eco-Friendly: Electric boilers produce no harmful emissions, making them an environmentally friendly choice.

• Low Maintenance: Designed for simple operation and minimal maintenance.

• Safety: Advanced safety features ensure worry-free operation in various industrial environments.



Choose Avogadro Energy for cutting-edge electric boiler solutions that combine performance, reliability, and sustainability.
